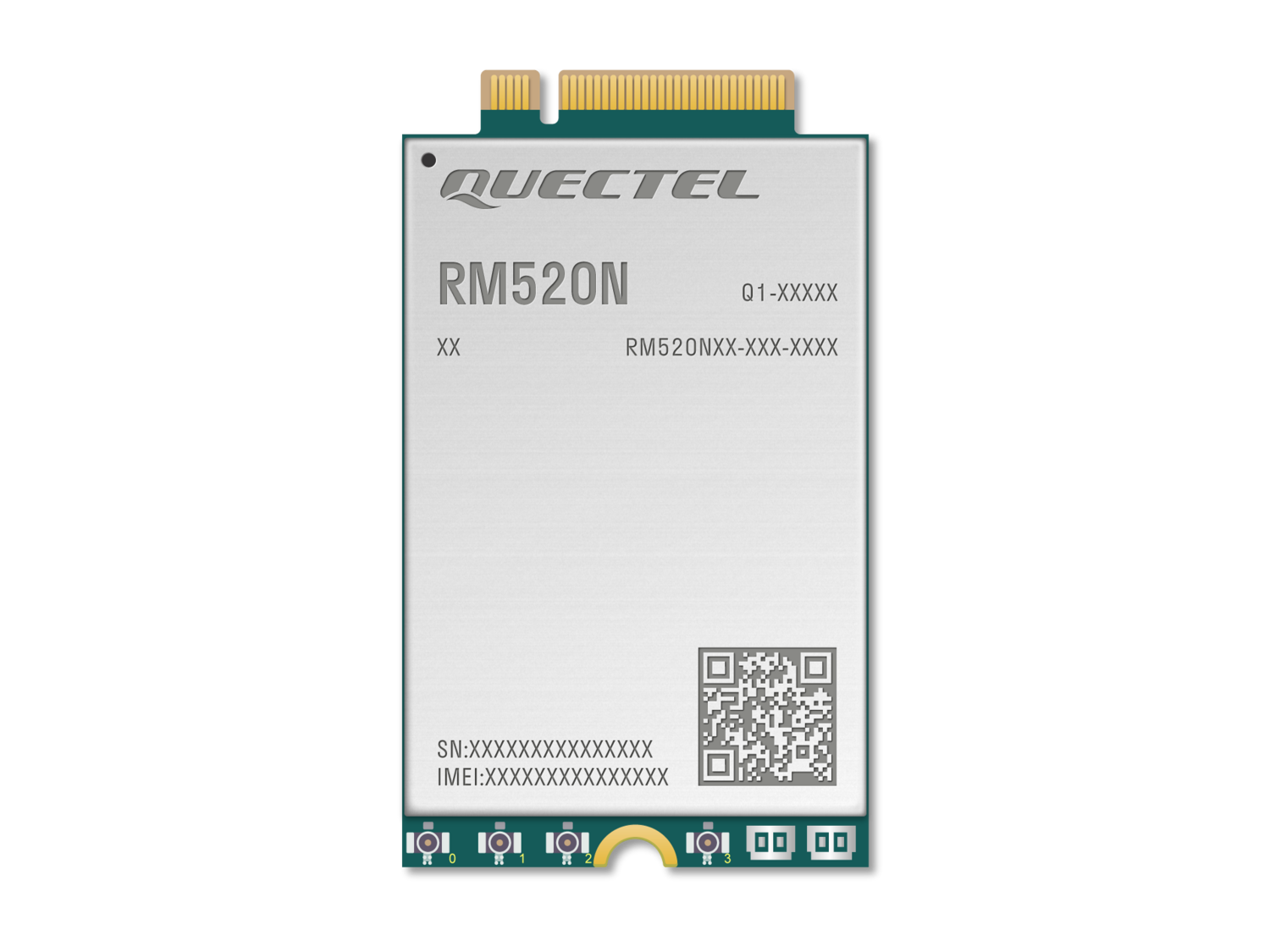

RM520NGLAA-M20-SGASA 5G Modul

RM520NGLAA-M20-SGASA 5G Modul von Quectel ist ein ein High-End Device der neuesten Generation nach Release 16.

Standardversion des Moduls nicht für den Einsatz in Lenovo Laptops geeignet!

Key Features:

• 5G NR: 3GPP Release 16 NSA/SA operation, Sub-6 GHz
• 5G/4G/3G multi-mode module with M.2 form factor
• Optimized for IoT and eMBB applications
• Worldwide 5G and LTE-A coverage
• NSA Bands: n1/n2/n3/n5/n7/n8/n12/n13/n14/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n71/n75/n76/n77/n78/n79
• SA Bands: n1/n2/n3/n5/n7/n8/n12/n13/n14/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n71/n75/n76/n77/n78/n79
• Sub-6 CA: FDD FDD, TDD TDD, FDD TDD 2CA
• LTE Category: DL Cat 19/ UL Cat 18
• LTE Bands: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B34/B38/B39/B40/B41/B42/B43/B46(LAA)/B48/B66/B71
• Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment
• Embedded GNSS: Supported
• USB 3.1 Interface: Supported
• PCIe 4.0 Interface: Supported
• Dimensions: 52.0 x 30.0 x 2.3 mm
• eSIM: Supported / Built-in eSIM (optional)

Data sheet RM520N-GL module
