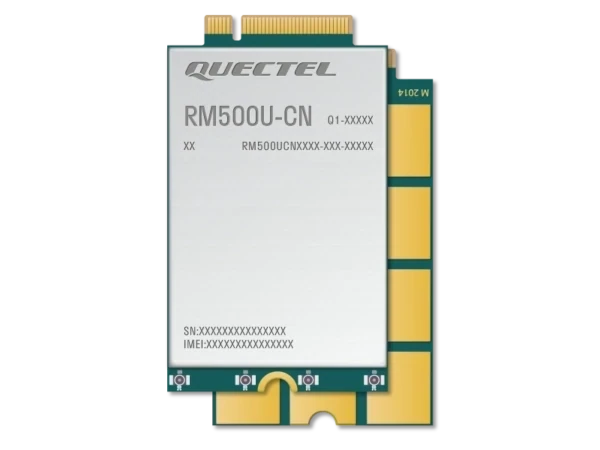

RM500UCNAB-D10-SNADA low-cost 5G M.2 Card

Not recommended for NEW designs - look at RM500UEA

RM500UCNB-D10-SNADA 5G Modul von Quectel ist ein ein low cost device der neuesten Generation für Release 16. und dual-SIM use. Die Karte nutzt den UniSOC UDX710 Chipsatzen.

Key Features:

• 5G NR: 3GPP Release 16 NSA/SA operation, Sub-6 GHz
• 5G/4G/3G multi-mode module with M.2 form factor
• Optimized for IoT and eMBB applications
• Worldwide 5G and LTE-A coverage
• NSA Bands: n41/ 78/ 79
• SA Bands: n1/ 28/ 41/ 77/ 78/ 79
• Sub-6 CA: FDD FDD, TDD TDD, FDD TDD 2CA
• LTE Category: DL Cat 12/ UL Cat 13
• LTE Bands: B1/ 2/ 3/ 5/ 7/ 8/ 20/ 28/ 34/ 38/ 39/ 40/ 41



• USB 3.0 /2.0 Interface: Supported
• PCIe 2.0 Interface: Supported
• eSIM supported
• Dimensions: 52.0 x 30.0 x 2.3 mm
• eSIM: Supported / Built-in eSIM (optional)

Data sheet RM500U M.2 Card
