5G M.2 Evaluation-Kit für RM500, RM50x, RM5x0,…

OHNE 5G M.2 Modul!

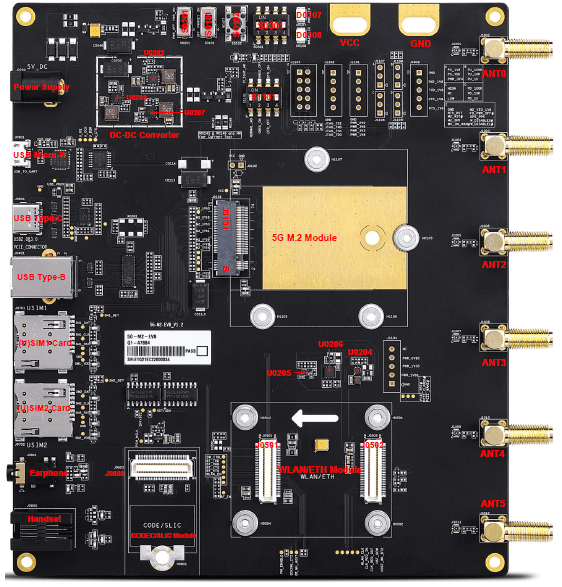

Das 5G M.2 Evaluationkit von Quectel dient dem Entwickler dazu, seine 5G Applikationen auf einfache Weise zu entwickeln und zu testen.

Features:

• Typical power supply:
  – Power jack: 5 V / 3 A
  – USB Type-C: 5 V
• M.2 Interface Standard PCI Express M.2 interface
  – (U)SIM1 and (U)SIM2 interfaces
  – (U)SIM card insertion detection
  – Class B (3.0 V) and Class C (1.8 V)
• USB
  – USB Type-C interface
  – USB 2.0 & 3.0
• USB-TO-UART
  – Converts debug UART to USB 2.0 signal (J0901)
  – Connects the module’s DBG_TXD and DBG_RXD to the EVB (J0902)
• WLAN/Ethernet Supports AF50T WLAN or RTL8111H/RTL8125 Ethernet
• Audio
  – Supports ALC5686 codec board or LE9643 SLIC board
  – 3.5 mm earphone interface, used to test the analog audio function of codec modules
  – RJ11-4P handset interface, used to test the analog audio function of SLIC module
• Physical Characteristics Size: 146 mm × 168 mm
• 6 antennas supporting 600–6000 MHz
