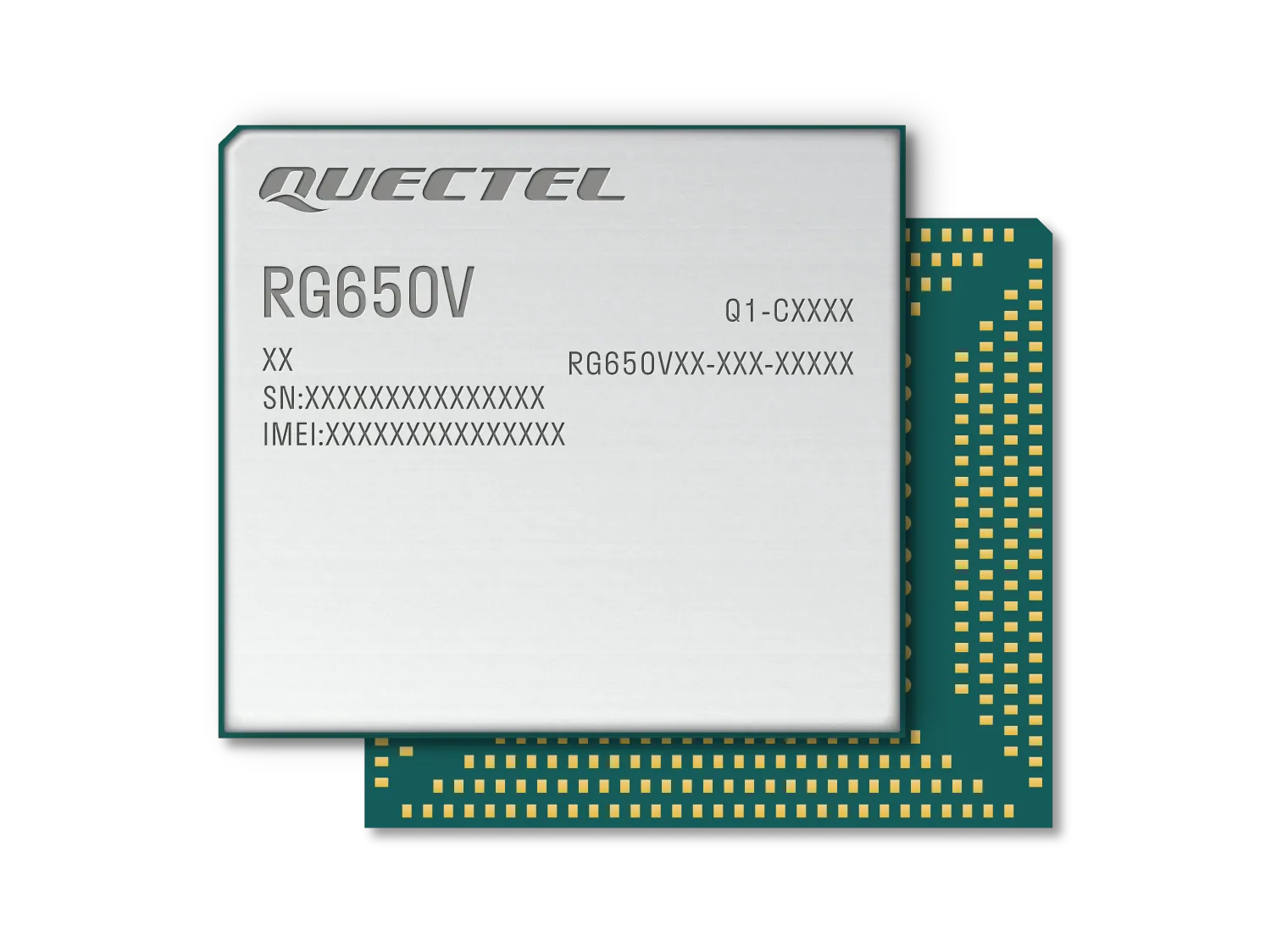

Das RG650V-EU ist ein 5G Modul auf Basis des Qualcomm SDX72 Chipsatz, das bereits die Anforderungen der 3GPP Rel 17 erfüllt. Es bietet $g & 3G fallback und die Qualcomm IZat Ortungstechnologie Gen9C lite (GPS, GLONASS, BDS, Galileo and QZSS).

Key Features:

• 5G NR: 3GPP Release 17 NSA/SA operation, Sub-6 GHz
• 5G/4G/3G multi-mode SMT module 46.0 × 53.0 × 3.05mm
• Optimized for IoT and eMBB applications
• NSA Bands: n1/ 3/ 5/ 7/ 8/ 20/ 28/ 38/ 40/ 41/ 75/ 76/ 77/ 78
• SA Bands: n1/ 3/ 5/ 7/ 8/ 20/ 28/ 38/ 40/ 41/ 75/ 76/ 77/ 78
• Sub-6 CA: FDD + FDD, TDD + TDD, FDD + TDD DL 3CA/ UL 2CA
• LTE Category: DL Cat 20/ UL Cat 18
• DL 4x4 MIMO: B1/ 3/ 5/ 7/ 8/ 20/ 28/ 32/ 38/ 40/ 41/ 42/ 43
• Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment
• USB 3.1 Interface: Supported
• PCIe 4.0 Interface: Supported
