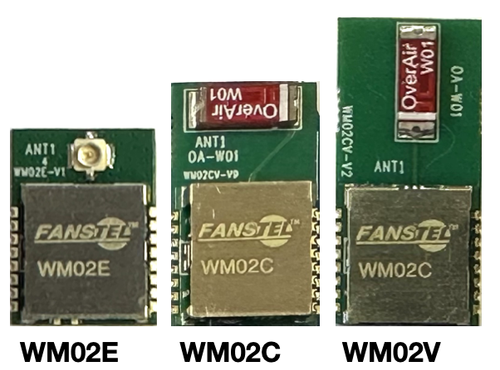

Engineering SAMPLES WM02C, WM02E, WM01C Nordic nRF7002 WiFi 6 Modules

WM02
6,25 €
lieferbar
1
Produktbeschreibung
  • Supports IEEE 802.11 a/b/g/n/ac/ax in the 2.4 GHz and 5 GHz bands.
  • Hosted by an nRF5340, nRF52840, or other MCU through an SPI interface.
  • Low-power and secure Wi-Fi for the IoT
  • Ideal coexistence with Bluetooth LE
  • Supported in nRF Connect SDK
  • Target Wake Time (TWT)
  • SPI / QSPI
  • Wi-Fi 6 Station (STA)
  • 1 Spatial Stream (SS)
  • 20 MHz channel bandwidth
  • 64 QAM (MCS7), 86 Mbps PHY throughput
  • OFDMA (Downlink and Uplink)
  • Co-existence interfaces
  • Operation Temperature: -40°C to +85°C
  • 16 castellated pins.
  • Integrated shield to resist EMI

WM02C

  • Uses an integrated chip antenna for both 5GHz and 2.4GHz
  • Size: 12x18.2 mm
  • 2.4 GHz WiFi range with an Android phone: 260 meters.

WM02E

  • An u.FL connector for an external antenna for both 2.4 GHz and 5 GHz.
  • Size: 12x16.2mm
  • 2.4 GHz WiFi range + ANT020 antenna with an Android phone: 230 meters.

WM02V

  • Uses an integrated vertical chip antenna for both 5GHz and 2.4GHz
  • Size: 12x25 mm
  • 2.4GHz WiFI range with an Android phone: 240 meters.
