ENGINEERING SAMPLES - WT02E40E, Quad-Radio, nRF7002 WiFi 6 and nRF5340 BLE 5.3 Combo Matter IoT Module
+2

ENGINEERING SAMPLES - WT02E40E, Quad-Radio, nRF7002 WiFi 6 and nRF5340 BLE 5.3 Combo Matter IoT Module

24,50 €
zzgl. Versand
Preisnachlass bei Bestellmengen ab 10 Stück
WT02E40E, Quad-Radio, nRF7002 WiFi 6 and nRF5340 BLE 5.3 Combo Matter IoT Module
Modul-Varianten
lieferbar
1
Mehr kaufen, mehr sparen
MengeEinzelpreisPreisnachlass
10 Artikel23,85 €3% Preisnachlass
20 Artikel23,25 €5% Preisnachlass
Produkt weiterempfehlen
WeiterempfehlenWeiterempfehlenAuf Pinterest veröffentlichen

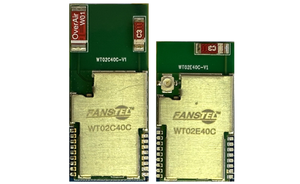

ENGINEERING SAMPLES - WT02E40E, Quad-Radio, nRF7002 WiFi 6 and nRF5340 BLE 5.3 Combo Matter IoT Module

Produktbeschreibung

Die Combo Module (BLE/WiFi) sind für ultra-low-power Anwendungen mit hoher Reichweite ausgelöst und bieten aktuelle Sicherheits und Verschglüsselungsoptionen. Sie unterstützen vier Funkstandarts und unterschiedlichen Antennen Konfigurationen.

Diese Modul-Familie eigent sich insbeondere auch für Matter Anwendungen.

5 GHz WiFi 6

2.4 GHz WiFi 6

2.4 GHz Bluetooth 5.3

2.4 GHz 802.15.4

Diue Module haben den gleiuchen Fottprint wie das BT40F BLE Modul von Fanstel.

Footprint upgradeable from BT40F. The size of WT02E40E is 16x28.2mm. It is footprint compatible with BT40F (15x20.8mm). A host PCB design can accommodate applications for BLE-802.15.4 only or both BLE-802.15.4 and WiFi 6.

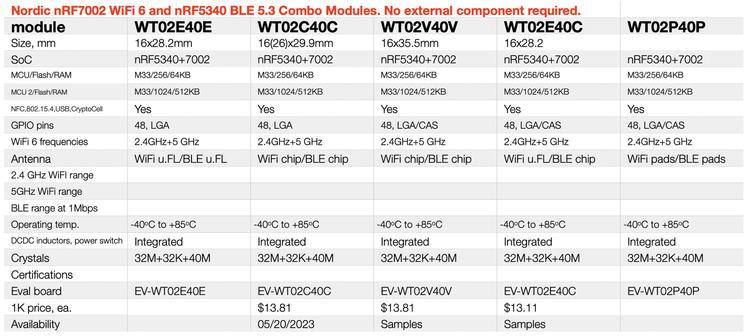

Übersicht Modulvarianten

Die Module benötigen keine weiteren Komponenten. Die benötigten 32MHz, 32.768kHz, 40MHz crystals, sowie DC/DC Spulen als Konverter für VDD, VDDH sind bereits auf dem Modul integriert.

nRF7002 WiFi 6 Features

  • 2.4 GHz and 5 GHz dual-band
  • Low-power and secure Wi-Fi for the IoT
  • Ideal coexistence with Bluetooth LE
  • Supported in nRF Connect SDK
  • Target Wake Time (TWT)
  • SPI / QSPI
  • Wi-Fi 6 Station (STA)
  • Complies with 802.11a/b/g/n/ac/ax
  • 1 Spatial Stream (SS)
  • 20 MHz channel bandwidth
  • 64 QAM (MCS7), 86 Mbps PHY throughput
  • OFDMA (Downlink and Uplink)
  • BSS coloring
  • Co-existence interfaces

nRF5340 BLE 5.3 Features

Network Core

  • ARM Cortex M33 at 64 MHz
  • 256KB flash/64KB RAM
  • Bluetooth 5.1 datarate: 2Mbps, 1Mbps, 500 Kbps, 125 kbps
  • IEEE 802.15.4-2006 Thread and Zigbee, 250 Kbps
  • Nordic 2.4 GHz proprietary
  • 3.2 mA current at 0 dBm TX
  • 2.6 mA current in RX.

Application Core

  • ARM Cortex M33 at 64MHz or 128 MHz
  • 1MB flash/512KB RAM
  • 510 EEMBC CoreMark score running from flash memory
  • ARM TrustZone CryptoCell-312 security subsystem
  • Supports NFC-A tag

Specifications

  • Both 32 MHz and 32.768 KHz, 40 MHz -40C to +105C, 20PPM crystals and load capacitors, are integrated.
  • DCDC converter Inductors and capacitors for both VDD and VDDH are integrated.
  • A power switch for powering up sequencing is integrated.
  • Host PCB area is minimized without needing an external component.
  • 48 GPIOs.
  • Operating temperature:-40C to +85C
  • Power Supply: 1??V to ??V

Upgradeable from BT40F Series

WT02E40E Series is upgradeable from BT40F Series.

WT02E40E

  • Size 16 x 28.2mm
  • nRF7002 WiFi with an u.FL connector
  • nRF5340 BLE with an u.FL connector.
  • Availability: Samples May 2023

WT02E40C

  • Size 16 x 28.2mm
  • nRF7002 WiFi with an u.FL connector
  • nRF5340 BLE with a horizontally mounted chip antenna
  • Availability: engineering samples in stock

WT02V40V

  • Size: 16 x35.5 mm
  • nRF7002 WiFi with a vertically mounted chip antenna
  • nRF5340 BLE with a vertically mounted chip antenna
  • Availability: engineering samples in stock.
  • There is a recent name change. Marking on the RFI shield is “WT02C40C” for the initial samples.

WT02C40C

  • Size: 16 (26 in antenna area) x 29.9mm, “T” shape.
  • nRF7002 WiFi with a horizontally mounted chip antenna
  • nRF5340 BLE with a horizontally mounted chip antenna
  • Availability: Samples in May 2023

Certifications

  • FCC ID:
  • IC (Industrial Canada) ID:
  • Europe:
  • Australia and New Zealand:
  • Japan, TELEC:
  • QDID: 119517
