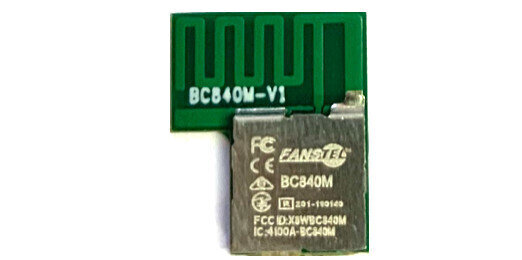

BC840M BLE Modul von Fanstel

Das BC840M BLE Modul von Fanstel ist ein Bluetooth Low Energy Funkmodul mit

Key Features:

• nRF52840 CKAA, ARM Cortex M4F, 64 MHz
• Complete RF solution with integrated antenna
• ARM® TrustZone® Cryptocell-310 co-processor
• Integrated PCB trace antenna
• BLE 5 data: 2Mbps,1Mbps,500kbps,125kbps
• Range: Up to 400m
• Serial Wire Debug (SWD)
• Flash/RAM: 1MB/256KB
• High speed 32 MHz SPI
• 12 bit/200 Ksps ADC, 8 configurable channels with programmable gain
• Temperature sensor
• Up to 4x SPI masters/3x SPI slaves
• Up to 2x I2C compatible 2-wire masters/slaves
• 2x UART (CTS/RTS)
• SoC Receiver Sensitivity: -96 dBm at 1Mbps
• Compact size: 7.1 x 12.3 x 1.5mm
• Operation temperature: - 40°C to 85°C

Data sheet BC840 modules
