Shop/Kits & Platforms/GNSS/Single Band

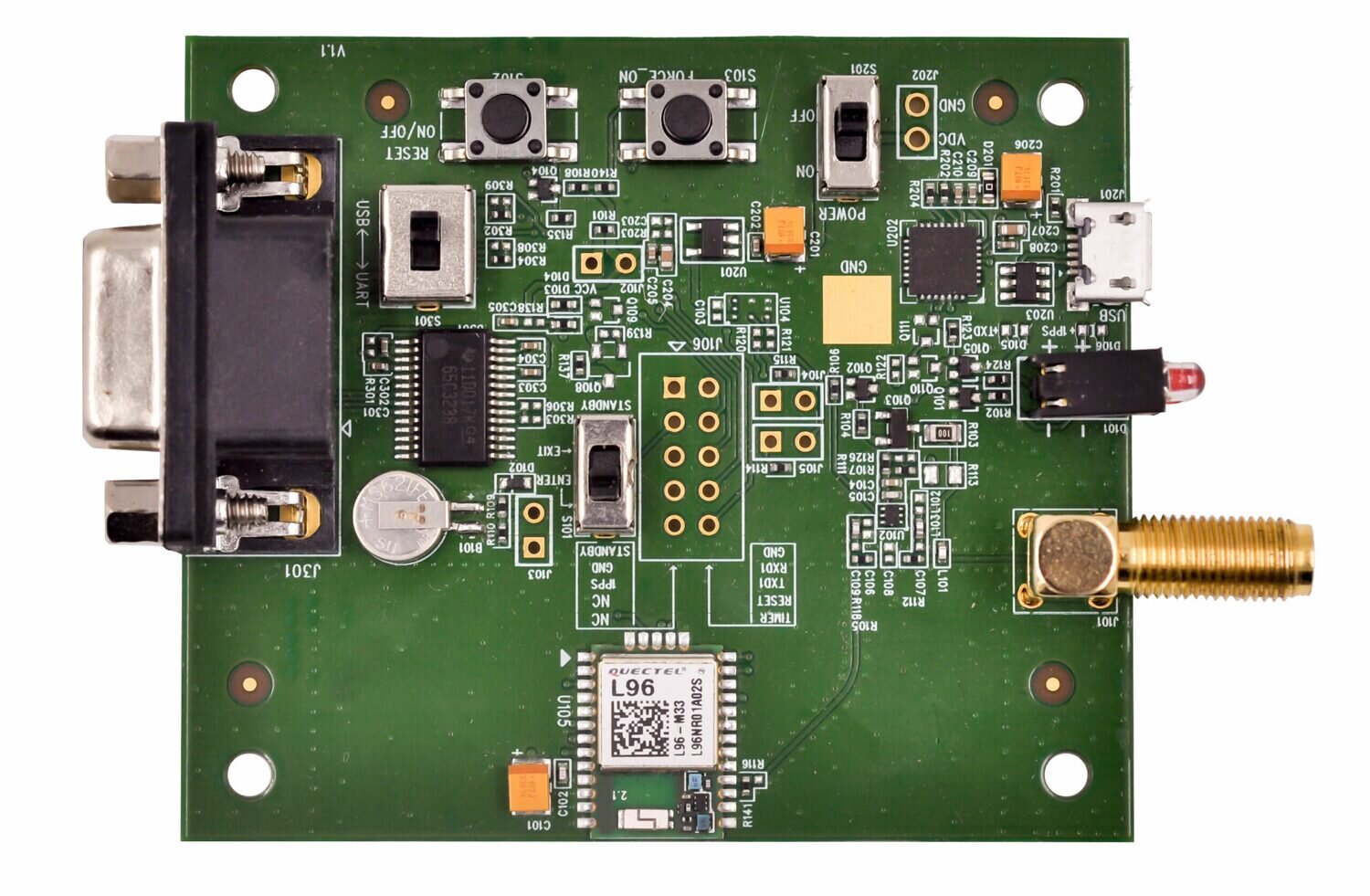

L96 EVB-Kit

L96 EVB-Kit

60,00 €
zzgl. Versand
lieferbar
1
Produkt weiterempfehlen
WeiterempfehlenWeiterempfehlenAuf Pinterest veröffentlichen

L96 EVB-Kit

Produktbeschreibung

Quectel L96 EVB-Kit für GNSS-Applikationen



Das Quectel L96 EVB-Kit für GNSS-Applikationen ist der ideale Partner für Ihre nächste GNSS-Entwicklung. Es verfügt über 33 tracking channels und sorgt mit dem bereits verbauten LNA für deutlich bessere Leistungen in Bereichen mit schlechtem Empfang. Die integrierte Chip-Antenne reduziert zudem die Gesamtgröße Ihrer Applikation.



Key Features Module L96:


  • Ultra-compact size: 14.0mm x 9.6mm x 2.0mm
  • Multi-GNSS engine for GPS, GLONASS, BeiDou, Galileo (RLM supported) and QZSS
  • Embedded, omnidirectional and wideband antenna
  • Built-in LNA for better sensitivity
  • Dual SAW filters for better noise cancellation
  • Support EASYTM and EPO advanced AGPS technologies without the need of any external memory
  • Ultra low tracking power consumption: 20mA
  • LOCUS, embedded log saving function without the need of host or any external flash
  • Support DGPS/SBAS (WAAS/EGNOS/MSAS/GAGAN)
  • Great anti-jamming performance due to multi-tone active interference canceller
  • Balloon mode, for high altitude up to 80km
  • GLP/geo-fence/jamming detection/odometer functions

EVB Kit:



  • One-page instruction
  • USB cable
  • GNSS active antenna
  • Bolts and coupling nuts (4 for each type)

Data Sheet L96 module



Mehr anzeigen
