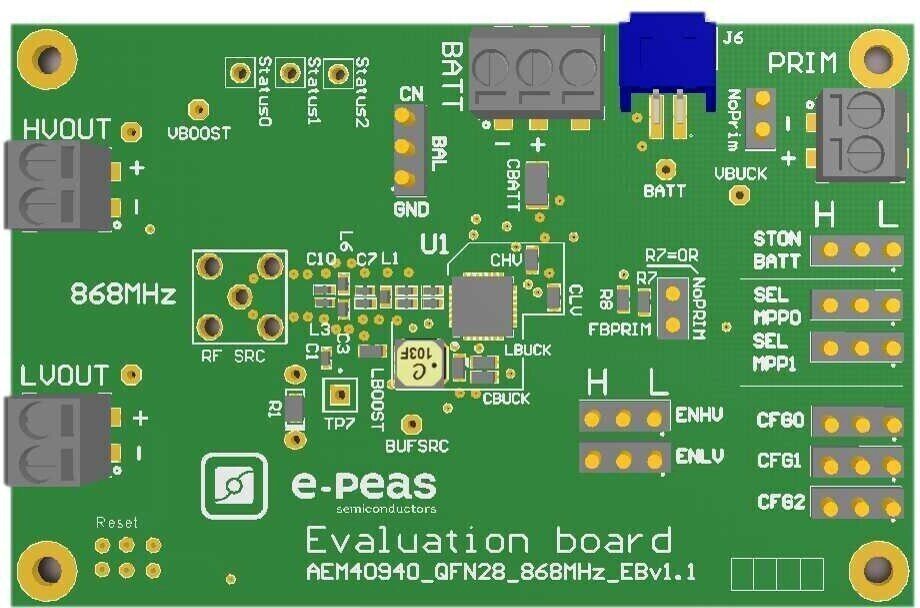

Evaluation board 40940-868 RF-energy-harvesting

The e-peas AEM40940 evaluation board is a printed circuit board (PCB) featuring all the needed components to operate the AEM40940 integrated circuit (IC). The AEM40940 evaluation board allows users to test the e-peas IC and analyze its performances in a laboratory-like setting.

868MHz-Version

Key Features:

• Three two-way screw terminals





  • Low-voltage load


  • High-voltage load


  • Primary energy storage element




• One three-way screw terminal





  • Energy storage element (battery or (super)capacitor)




• Two male 50 SMA connectors





  • Connections to the RF source


  • Associated matching network




• One 2-pin "Shrouded Header"





  • Alternative connection for the storage element




• Nine 3-pin headers





  • Maximum power point (MPP) configuration


  • Low drop-out regulators (LDOs) enabling


  • Energy storage elements and LDOs configuration


  • Dual-cell supercapacitor configuration


  • Start-on-battery enabling




• Two 2-pin headers





  • Primary battery configuration




• Provision for three resistors





  • ZMPP configuration


  • Primary battery configuration




• Three 1-pin headers





  • Access to status pins



• RF harvesting


• Industrial monitoring


• Indoor geolocation


• Home automation


• E-health monitoring


• Wireless sensor nodes
