Evaluation board 30940 RF-energy-harvesting

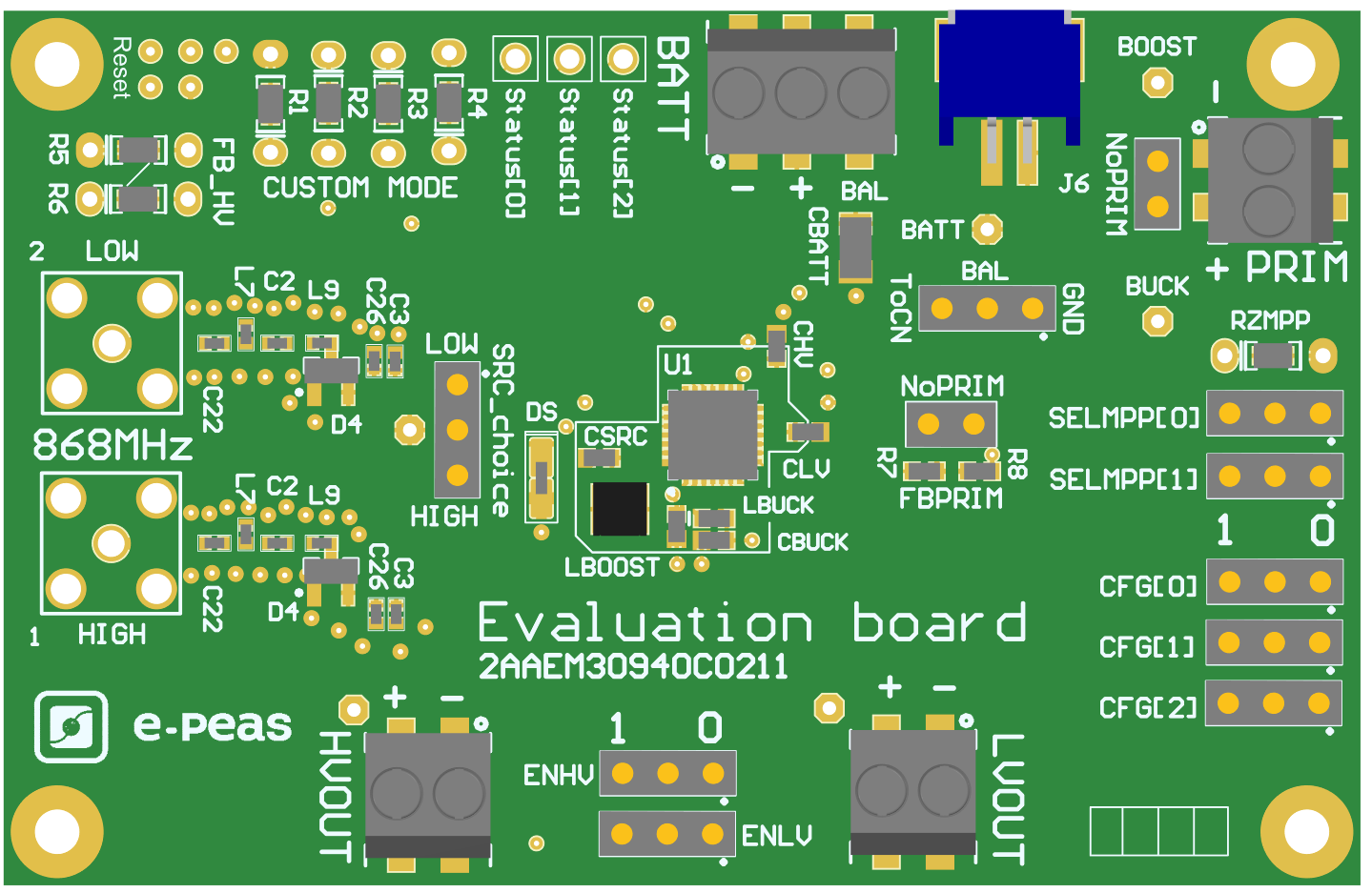

The e-peas AEM30940 evaluation board is a printed circuit board (PCB) featuring all the needed components to operate the AEM30940 integrated circuit (IC). The AEM30940 evaluation board allows users to test the e-peas IC and analyze its performances in a laboratory-like setting.

868MHz-Version

Key Features:

• Three two-way screw terminals




  • Low-voltage load
  • High-voltage load
  • Primary energy storage element
• One three-way screw terminal




  • Energy storage element (battery or (super)capacitor)
• Two male 50 SMA connectors




  • Connections to the RF source
  • Associated matching networks and rectifiers
• One 2-pin "Shrouded Header"




  • Alternative connection for the storage element
• Nine 3-pin headers




  • Low drop-out regulators (LDOs) enabling
  • Energy storage elements and LDOs configuration
  • Dual-cell supercapacitor configuration
  • Connection from rectifier to AEM30940
• Two 2-pin headers




  • Primary battery configuration
• Provision for nine resistors




  • Custom mode configuration
  • Primary battery configuration
  • ZMPP configuration
• Three 1-pin headers




  • Access to status pins

• RF harvesting
• Industrial monitoring
• Indoor geolocation
• Home automation
• E-health monitoring
• Wireless sensor nodes
