Evaluation board 10941-Photovoltaic-Energy-Harvesting

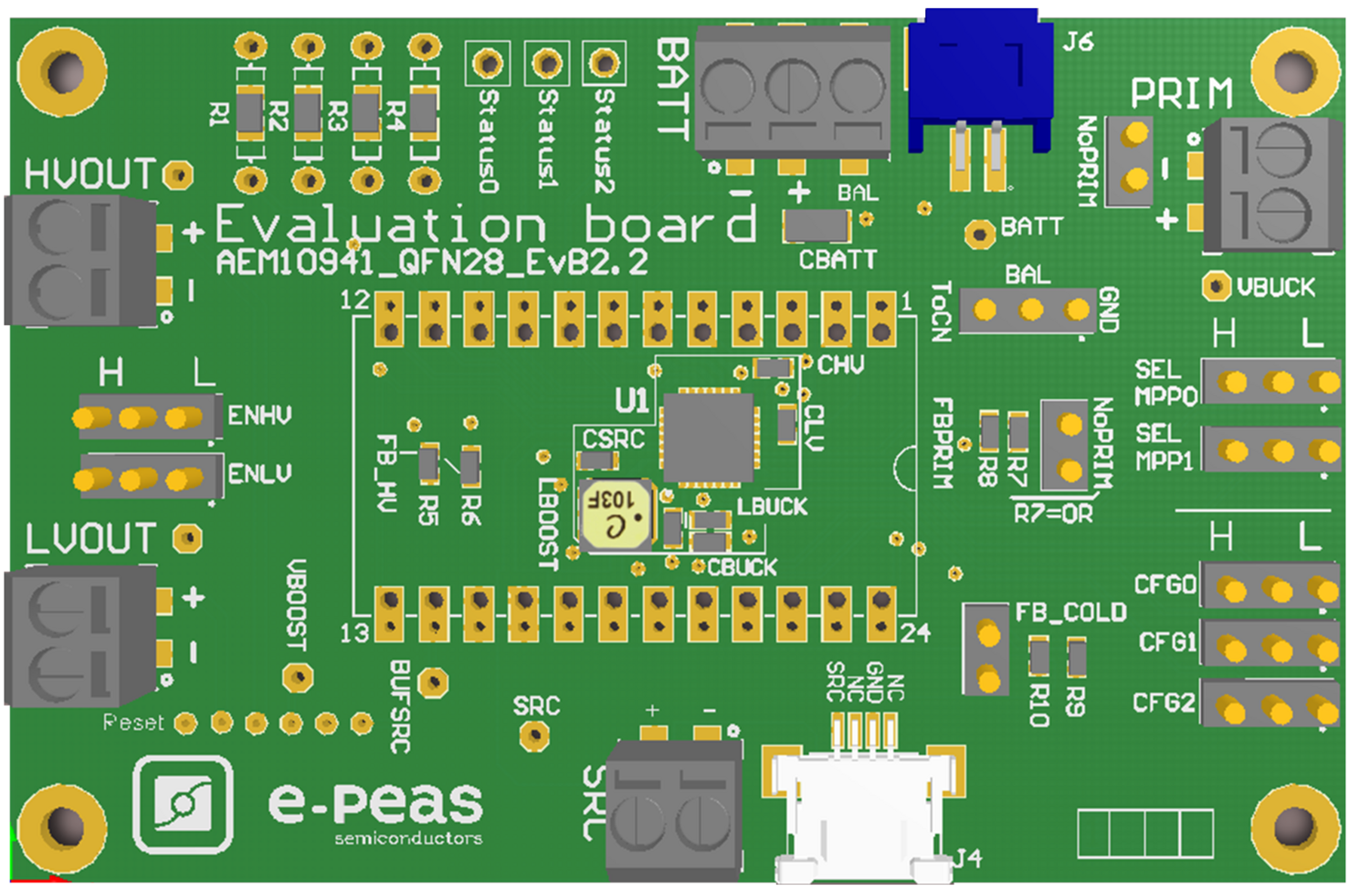

The AEM10941 evaluation board is a printed circuit board (PCB) featuring all the needed components to operate the
AEM10941 integrated circuit (IC). The AEM10941 evaluation board allows users to test the e-peas IC and analyze its performances in a laboratory-like setting.

Key Features:

• Four two-way screw terminals




  • Source of energy (PV cell)
  • Low-voltage load
  • High-voltage load
  • Primary energy storage element
• One three-way screw terminal




  • Energy storage element (battery or (super)capacitor)
• One zero insertion force (ZIF) connector




  • Alternative connection for the source
• One 2-pin "Shrouded Header"




  • Alternative connection for the storage element
• Eight 3-pin headers




  • Maximum power point (MPP) configuration
  • Low drop-out regulators (LDOs) enabling
  • Energy storage elements and LDOs configuration
  • Dual-cell supercapacitor configuration
• Three 2-pin headers




  • Primary battery configuration
  • Cold-start configuration
• Provision for ten resistors




  • Custom mode configuration
  • Cold start configuration
  • Primary battery configuration
• Three 1-pin headers




  • Access to status pins

• PV cell harvesting
• Industrial monitoring
• Geolocation
• Home automation
• E-health monitoring
• Wireless sensor nodes
