AI7687H
+3

AI7687H

AI7687H
8,95 €
lieferbar
1
Produktbeschreibung

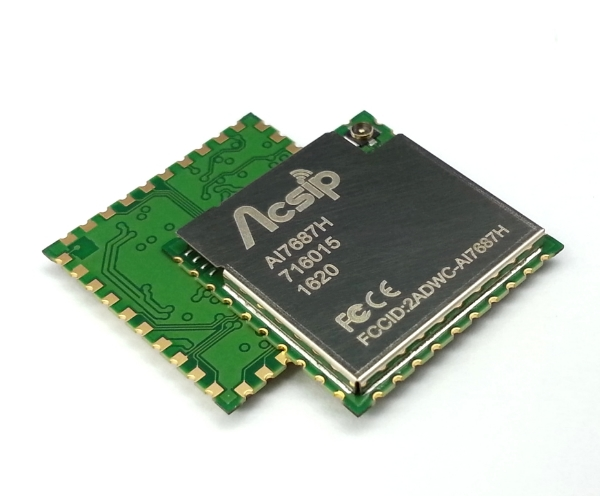

AI7687H WiFi-Modul


Das AI7687H WiFi-Modul von AcSiP ist ein hochintegriertes SiP-Modul samt Applikationsprozessor, low power 1x1 11n single-band Wi-Fi-Subsystem sowie einer Power Management Unit.

Features:



  • Small footprint?18 mm x 18 mm x 1.7 mm

  • ARM Cortex M4 MCU with FPU with up to 192MHz clock speed

  • 352KB SRAM / 64KB boot / 2MB Flash

  • IEEE 802.11 b/g/n compliant

  • Hardware crypto engines including AES, DES/3DES, SHA2 for network security

  • Security support for WFA WPA/WPA2 personal, WPS2.0, WAPI

  • Two UART interfaces with hardware flow control and one UART for debug, all multiplexed with GPIO

  • Two I2C master interface multiplexed with GPIO

  • One I2S interface multiplexed with GPIO

  • Security support for WFA WPA/WPA2 personal, WPS2.0, WAPI

  • Integrated LNA, PA, and T/R switch

  • Operation Temperature: Operating : -40? ~ 85?

  • On module MHF4 series connector: 20449-001E


Data Sheet
