AEM10330
+3

AEM10330

7
15,00 €
lieferbar
1
Produktbeschreibung

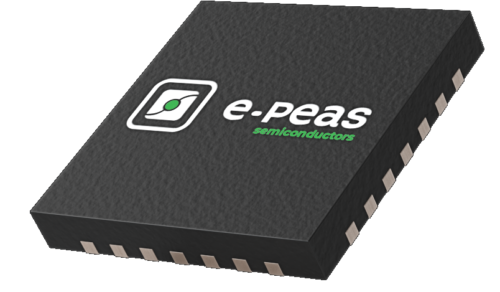

AEM10330 Power Management IC


E-peas' solar energy harvesting IC solution - The AEM10330 is an integrated energy management circuit that extracts DC power from an ambient energy harvesting source to simultaneously supply an application and store energy in a storage element. The AEM10330 allows to extend battery lifetime and ultimately eliminates the primary energy storage element in a large range of applications, such as Asset tracking/monitoring, Industrial applications, Retail ESL/smart sensors, Aftermarket automotive systems, Smart home/building.

Key Features:



  • Ultra-low-power start-up:

    • Cold start from 275 mV input voltage and 3 ?W input power (typical)


  • Very efficient energy extraction:

    • open-circuit voltage sensing for Maximum Power PointTracking (MPPT)

    • Selectable open-circuit voltage ratios from 60% to 90% orfixed impedance

    • Programmable MPPT sensing period-MPPT voltage operation range from 100 mV to 4.5 V


  • Adaptive and smart energy management with optionalprimary battery

  • Load supply voltage

    • Current drive capability: 30 mA in low power mode, 60 mAin high power mode

    • Selectable load voltage from 1.2 V to 3.3V


  • Battery protection features

    • Selectable over-charge and over-discharge protection for any type of rechargeable battery or (super-)capacitor

    • Fast super-capacitor charging

    • Dual cell super-capacitor balancing circuit


  • Smallest footprint, smallest BOM

    • Only four external components are required

    • One 10 µH inductor

    • Three capacitors: one 10 µF, one 15 µF, one at least 40µF


Applications:


  • Asset Tracking/Monitoring

  • Retail ESL/ Smart sensors

  • Industrial applications

  • Aftermarket automotive

  • Smart home/building
